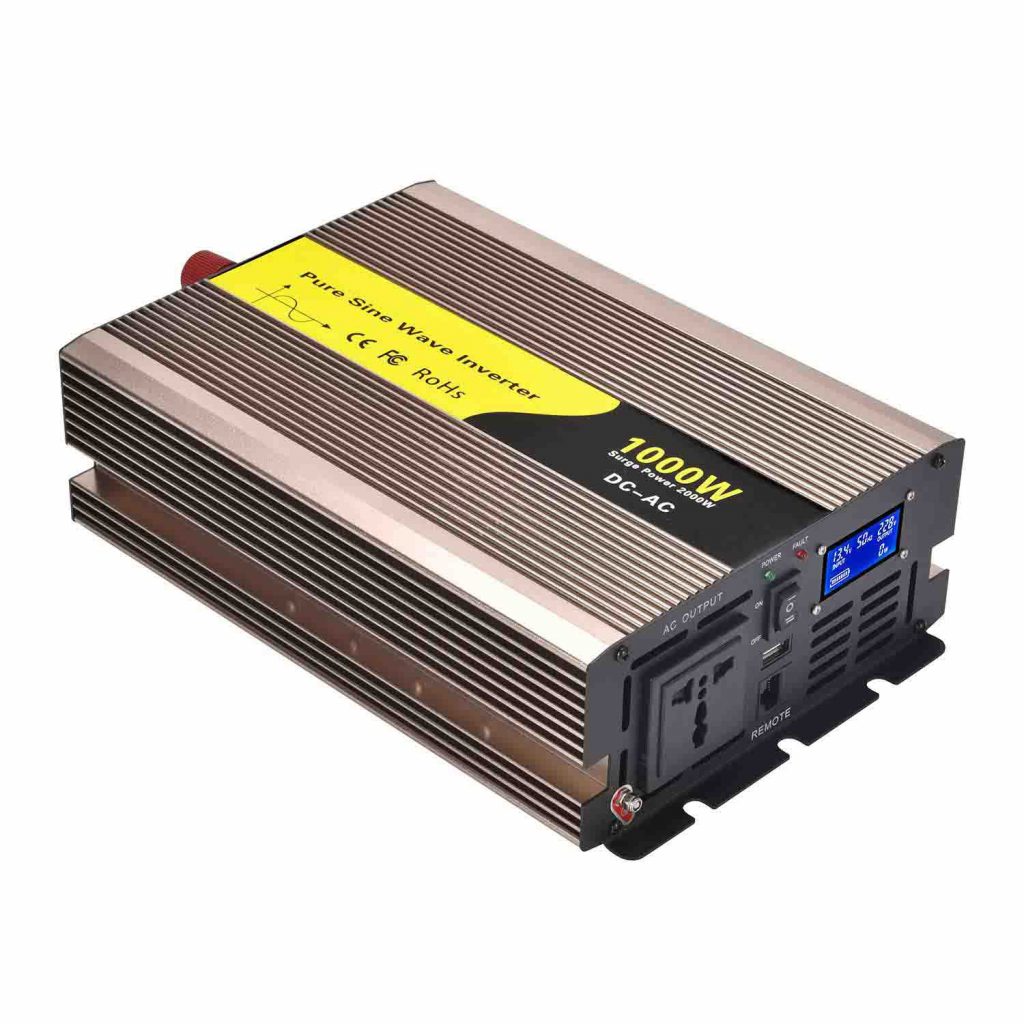

Power Inverter

300w 500w 800w 1000w 1500w 2000w 2500w Pure Sine Wave Inverter 12v 220v Power Inverter

Rated power1000W
 Peak power2000W
 Input voltageDC12VDC24VDC48V
 Output voltage100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5%
 Unload current less than0.8A0.5A0.3A
 Output frequency50Hz±0.5Hz or 60Hz±0.5Hz
 Waveform distortionTHD<3%(Linear load)
 USB port5V 1A
 Max.efficiency90%
 Input voltage range10-15.5V20-31V40-61V
 Low voltage alarm10.5±0.5V21±0.5V42±1V
 Low voltage protection10±0.5V20±0.5V40±15V
 Over voltage protection15.5±0.5V31±0.5V61±1V
 Low voltage recover12.3±0.5V24±0.5V48±1V
 Over voltage recover14.8V±0.5V29.5V±0.5V59V±1V
 Protect function Low voltageAlarm at first, voltage continuously reduce. LED Red light on & shut down
 Over voltageLED Red light on, shut down
 Over loadLED Red light on, shut down
 Over temperatureAlarm at first, tempurature continuously rise. LED Red light on & shut down
 Short circuitLED Red light on
 Input reverse polarityFuse burn-out
 Working temperature-10°- + 50°
 Storage temperature-30°-+ 70°
(LxWxH) Dimension(mm)295x180x78
 Packing(mm)355x215x90
 Net./gross weight(g)2720/3000
 QTY/Cth8Pcs
 Meas.Ctn(mm)465x375x435
 Warranty 2 years
 Cooling methodIntelligent air cooling
