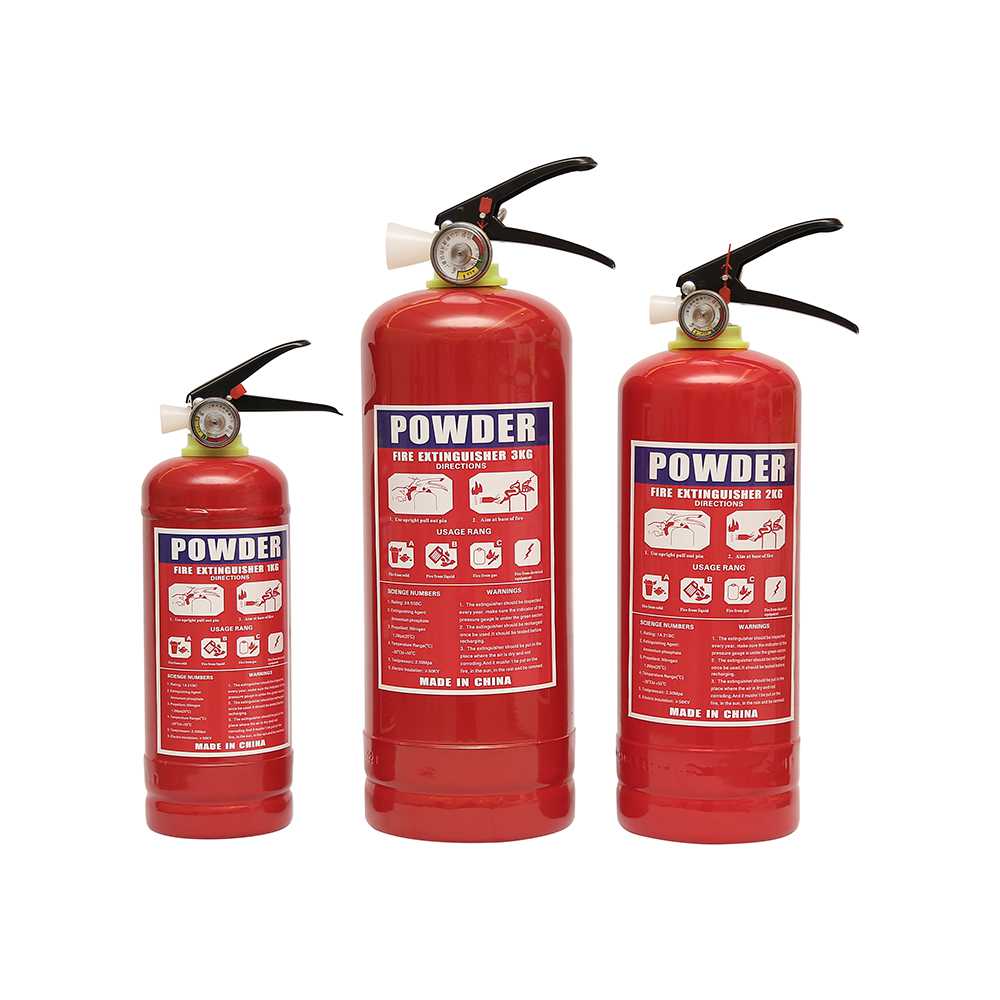

Fire Extinguisher

Size	0.5kg-30kg
Fire Rating	34B
Content	DCP
Test Pressure	27Bar
Working Pressure	18Bar

How to use DCP fire extinguishers?

1. Hold the extinguisher handle vertically and pull out the Pin at the top of the extinguisher.
2. Aim at the base of the fire instead of flames(important) and stand downwind with 2 meters far from the fire.
3. Squeeze the lever slowly and release dry powder inside from side to side, back and forth until you can’t feel an pressure on the handle. That’s how you know the extinguisher is completely out.
5. Be sure to have read the instructions on your fire extinguisher.

Model	Weight	Fire Rating	Duration time	Distance	Application scenarios
MF/ABC0.5	0.5kg	0.5A 8B C E	>=5s	>=3M	small car
MF/ABC1	1kg	1A 21B C E	>=8s	>=3M	normal car
MF/ABC2	2kg	1A 21B C E	>=8s	>=3M	SUV
MF/ABC3	3kg	2A 34B C E	>=10s	>=3.5M	office, home, department
MF/ABC4	4kg	2A 55B C E	>=13s	>=3.5M	school, store, bus
MF/ABC5	5kg	3A 55B C E	>=15s	>=4M	market, company, warehouse
MF/ABC6	6kg	3A 55B C E	>=17s	>=4.5M	factory, company
MF/ABC9	9kg	4A 144B C E	>=20s	>=5M	workshop, factory, warehouse
MF/ABC12	12kg	6A 144B C E	>=24s	>=5.5M	workshop,warehouse, factory

How to choose fire extinguishers?

Fire Rating & Correspondent Fire Extinguisher:

A. Fire on solid items	Water-based,Foam, DCP fire extinguisher
B. Fire on liquid & solid that melt	Foam, DCP, CO2 fire extinguisher
C. Fire caused by fuel gas	DCP, water-based fire extinguisher
D. Fire on metal	Graphite powder fire extinguisher
E. Fire with electricity	DCP, CO2 fire extinguisher
F. Fire in cooking appliance	DCP fire extinguisher
