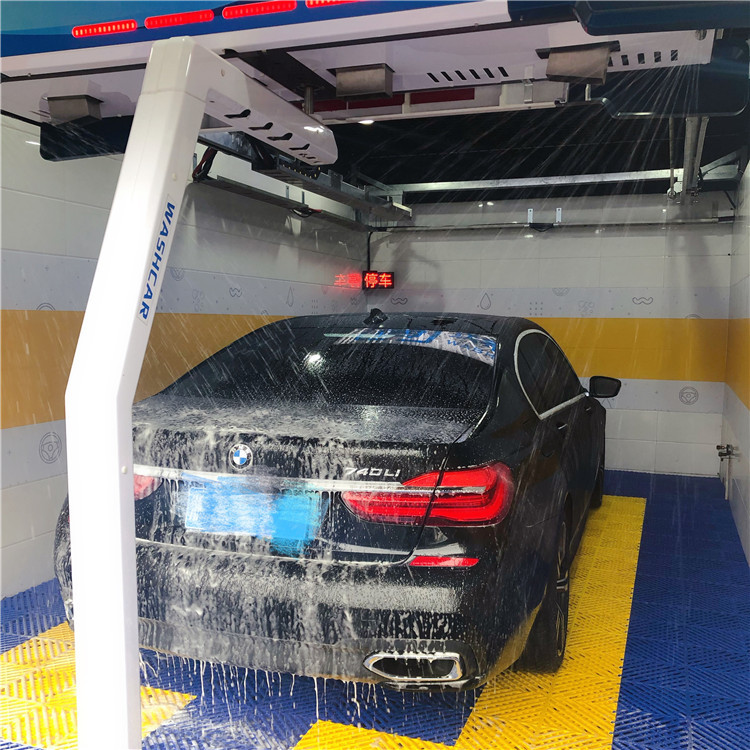

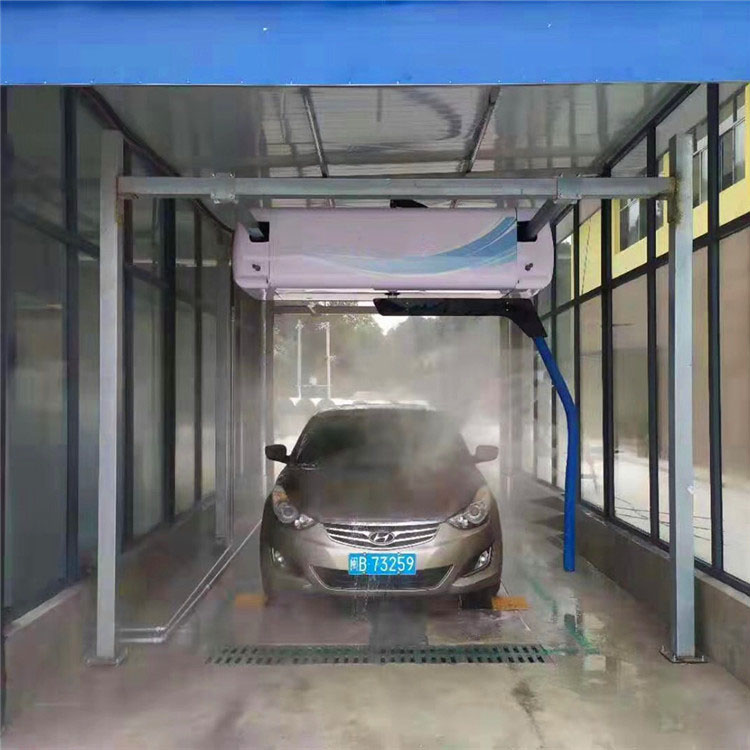

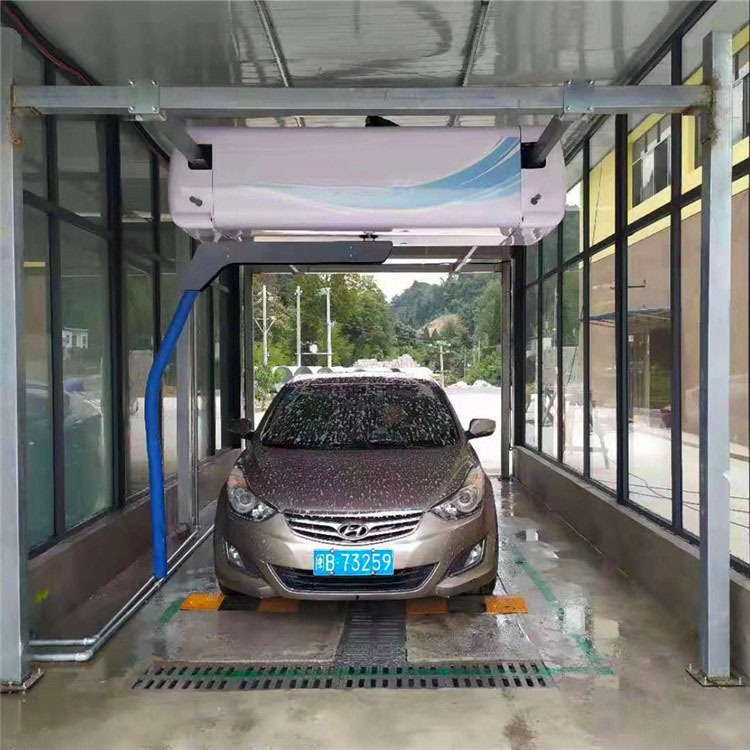

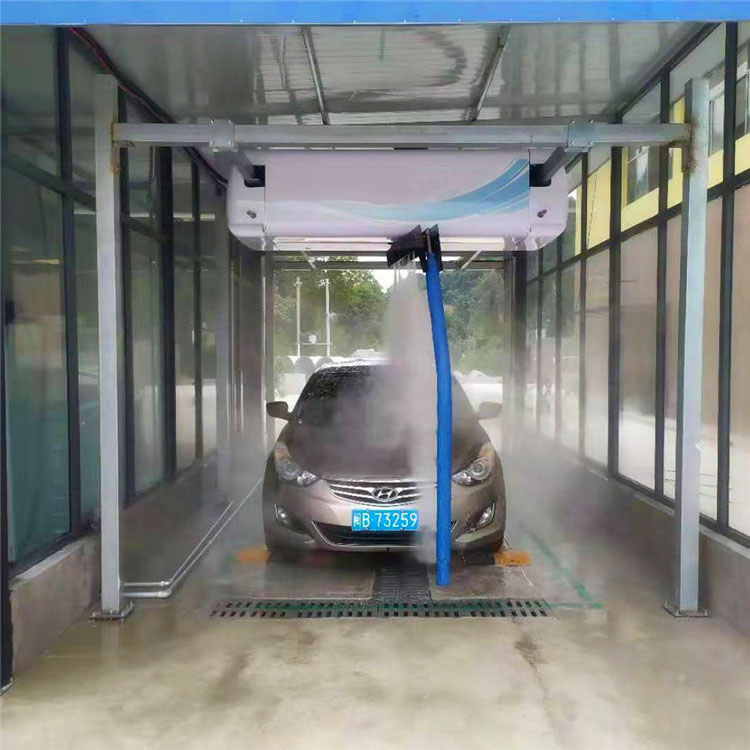

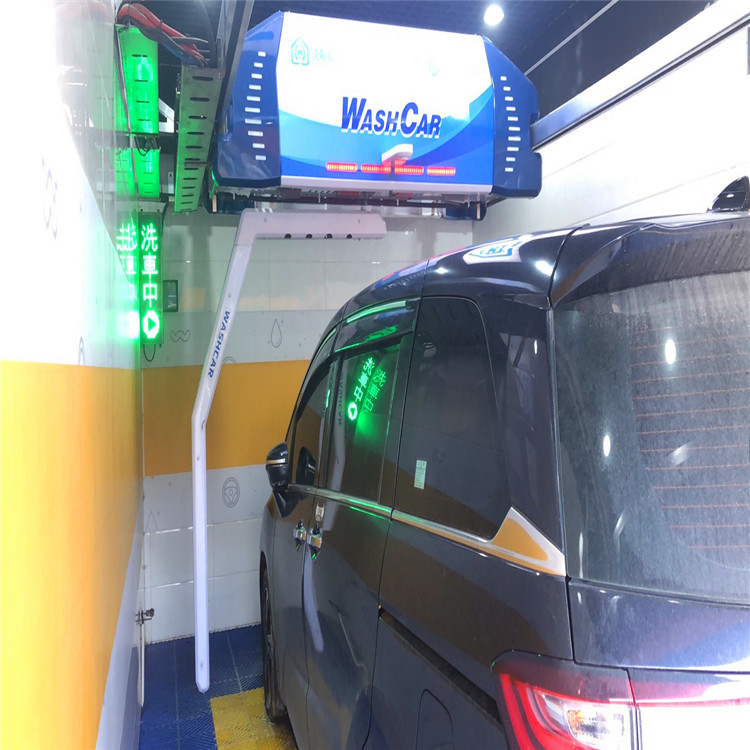

Automatic Touchless Car Wash Machine

The new generation of touchless car washing system stands out in so many ways: looks,

mechanics, flexibility, and versatility. It has been created to satisfy the needs of the most

demanding professionals in the wash world. What’s more, this new series has a special

quality which makes it different to anything the market has ever known before: its

adaptability. The interior immediately appeals with its stylish modern design, which

combines the latest technology and maximum reliability in the wash.

INTENSIVE CAVE ALL ROUND:

FULL FUCNTION MODE(7-8 MINUTES): STARTUP→VOICE PROMPT →CHASSIS

WASH,WHEEL WASH→ FOAM A→HIGH PRESSURE WASH→FOAM B→HIGH

PRESSURE WASH→MAGIC COLORFUL FOAM→HIGH PRESSURE

WASH→WAX SPRAY→AUTOMATIC AIR DRY→ END

ECONOMIC OMNIPOTENT:

STARTUP→CHASSIS WASH,WHEEL WASH→FOAM A→HIGH PRESSURE

WASH→ FOAM B→HIGH PRESSURE WASH→WAX SPRAY→AUTOMATIC AIR

DRY→END

SPECIFICATIONS AND FUNCTION

	Model	Economic omnipotent	Precision stainless steel universal
1	Machine size（L*W*H）	3000*1300*700mm	3000*1300*700mm
2	Installationsize(L*W*H)	7500*3600*3000mm	7500*3600*3000mm
3	Max. Washheight	2000mm	2000mm
4	Max. Washwidth	2200mm	2200mm
5	Max. Washlength	5900mm	5900mm
6	Washing speed	3-6 min.(depend on the operation mode or procedure set )	3-8 min.(depend on the operation mode or procedure set )
7	Total weight	2000kg	2300kg
8	Power supply	380V/16kw~23kw	380V/16kw~23kw
9	Air switch	100A	100A
10	Water pump motor power	15kw~22kw	15kw~22kw
11	Air dryer power	4kw~5.5kw*4 sets frequency control	4kw~5.5kw*4 sets frequency control
12	Moving motor power	0.37kw frequency control	0.37kw frequency control
13	Rotation motor power	0.37kw frequency control	0.37kw frequency control
14	Control system	PLC+HMI control system	PLC+HMI control system
15	Drive system	Frequency inverter control	Frequency inverter control
16	Detection system	Ultrasonic intelligent three-dimensional detection	Ultrasonic intelligent three-dimensional detection

17	Water consumption	100-140L/car	100-150L/car
18	Electricity consumption	0.4-1kw•H/car	0.5-1.2kw•H/car
19	Packing	≈8CBM	≈10CBM
		360° high pressure washing	360° high pressure washing
		Chassis and wheel washing	Chassis wheel washing
		Detergent spraying	Detergent spraying
			Colorful Foam spraying
		Wax spraying	Wax spraying
		Air dryer 4kw~5.5kw*3 sets frequency control	Air dryer 4kw~5.5kw*4 sets frequency control
		LED indicator system	LED indicator system
		Self-parking and detecting system	Self-parking and detecting system
		Vehiclecollision avoidance system	Vehiclecollision avoidance system
		Operation permission setting function	Operation permission setting function
		Freeze Prevention system	Freeze Prevention system
		Lubrication-free	Lubrication-free
		Equal pressure anti blocking nozzle	Equal pressure anti blocking nozzle
		Safe alarm system	Safe alarm system
		Throughput counting	Throughput counting
		Automatic standby system	Automatic standby system
		Remote control	Remote control
		Breakdown self check	Breakdown self check
		Galvanized steel frame	Galvanized steel frame
	Optional	Self-service payment system	Self-service payment system
	Optional	Colorful lights	Colorful lights
	Optional	Water recycle system	Water recycle system

Parts/Brand/Power

Water pump	PINFL Germany	Pump engine	Shanghai China（15Kw）
Rotating motor	370W frequency control	Drive engine	370W frequency control
PLC	Delta Taiwan	Touchscreen	Delta Taiwan
Sensor	Ultrasonic(PEPPERL+FUCHS)	Photoelectric sensor	Bonner America
Proximity sensor	PEPPERL+FUCHS	Frequency inverter	DELTA Taiwan
Electrical	Schneider	Relay	Schneider
Power	Kai Yuan China	Air dry engine	4kw~5.5kw*4 sets

INSTRUCTION

1、The system is controlled by Delta PLC with strong anti-interference ability,high automation level, easy operation and stable running.

2、Language can be set to match customers’ requirements from different countries. 3、Emergency stop, diagnosis of sensors for remove any fault in time.

4、Frequency inverter control,speed can be set freely, start up at constant speed and stop with deceleration to avoid impact to the machine.

5、Water and electrical cabinet are separated, electrical cabinet is place in dry place to avoid the moisture to get into electrical cabinet.

6、Our company has been certified by ISO 9001 quality management system. 7、The wash mode and parameters can be set to meet different requirements.

8、Strong current and light current are separated, power line and signal line are separated to avoid interference.

9、Equipped with collision avoidance system to avoid damage to the machine and car. 10、Fault alarm system for locate and remove any failure in working.

11、Equipped Counting function.

12、Maintenance reminding is set up in factory for remind operator of the maintenance of car washing machine.

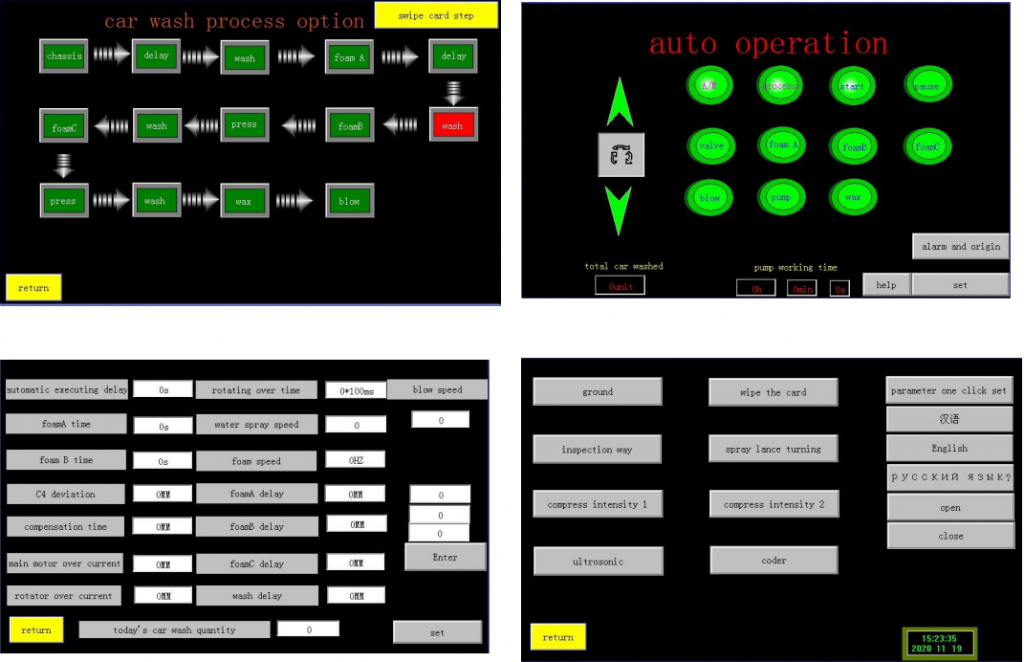

13、Equipped with remote control for easy operation.the car wash machine can be also controlled in the touchscreen.

14、 LED indicator for guiding the car when getting in the washing bay.the washing process can be displayed in the LED screen.

NO.	Parts
①	Moving wheel
②	Color foam sprayer
③	Wax sprayer
④	Moving assembly
⑤	Air drying system
⑥	Rotating system
⑦	Liquid distributor
⑧	Foam sprayer

Automatic touchless car wash machine cost account

HZ		50HZ	40HZ	30HZ
High pressurewashing	Water(L)	80	100	130
	Energy(KW•H)	0.25	0.31	0.41
Detergent	Water(L)	7.5	10	12.5
	Energy(KW•H)	0.01	0.01	0.02
Foam	Water(L)	7.5	10	12,5
	Energy(KW•H)	0.01	0.01	0.02
Color foam	Water(L)	7.5	10	12,5
	Energy(KW•H)	0.01	0.01	0.02
Wax	Water(L)	7.5	10	12,5
	Energy(KW•H)	0.01	0.01	0.02
Air drying	HZ	30	20	10
	Energy(KW•H)	0.25	0.5	0.75

Water consumption and water pressure are directly proportional.the higher water pressure the larger water consumption.
Metering pump adjusting formula: C=5400/B Detergent(ml)=375000/(B*HZ)
ml: Detergent consumption； B: Concentration ratio;
C: Metering pump set value

E.g.:The detergent concentration ratio is 1:100, 50HZ, the detergent concentration consumption=37500/(100*50)=75ml

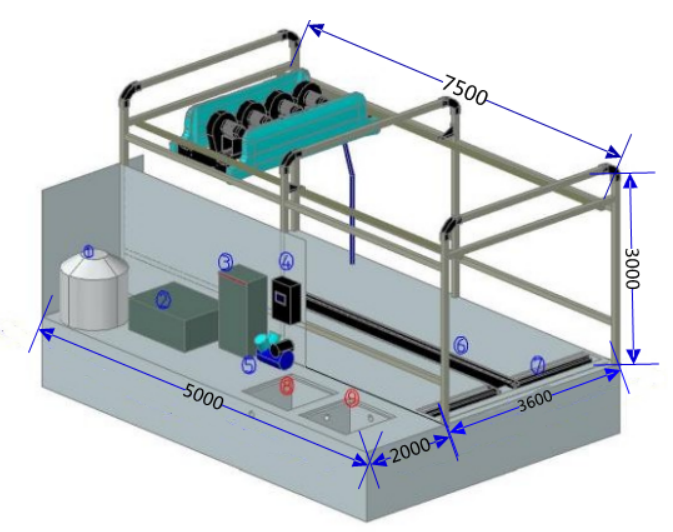

LAYOUT AND FOUNDATION

Serial NO.	Description	Remarks
1	Water container	≥1m³
2	Water pump
3	Detergent matching cabinet
4	Electrical cabinet
5	Air compressor
6	Drainage system
7	Drainage for ground spray
8	Filtering basin	Only for water recycling
9	Filtering basin	Only for water recycling
